Fits a hole of 80 to 87 mm · fitting height 94 mm
Bulb not included: you need 1 × GU10. Other bulbs
- Delivery in 2 to 5 working days
Accessories from the Zoom series
Specifications
| Colour | Grey |
| Material | Aluminium |
| Voltage | 220-240V |
| IP rating | IP20 |
| Width (mm) | 93.7 |
| Height (mm) | 93.7 |
| Depth (mm) | 90 |
| Number of light points | 1 |
| Fitting | GU10 |
| Light source type | GU10 |
| Light source included | No |
Documents
Frequently asked questions
What hole size does this recessed spotlight fit?
In a hole of 80 to 87 mm: 80 mm, 81 mm, 82 mm, 83 mm, 84 mm, 85 mm, 86 mm, 87 mm. The manufacturer gives 80 mm as the cut-out; up to 87 mm the rim (90 mm) still covers the hole.
How tall is this fitting?
94 mm, without bulb. With a regular GU10 bulb and lamp holder fitted you need more space; with a low-profile LED module about 6 cm is enough.
About this light
This recessed spotlight from the Zoom range has a square grey aluminium housing measuring 93.7 mm, with an 80 mm cut-out and a 90 mm installation depth. It takes a GU10 lamp, sold separately.

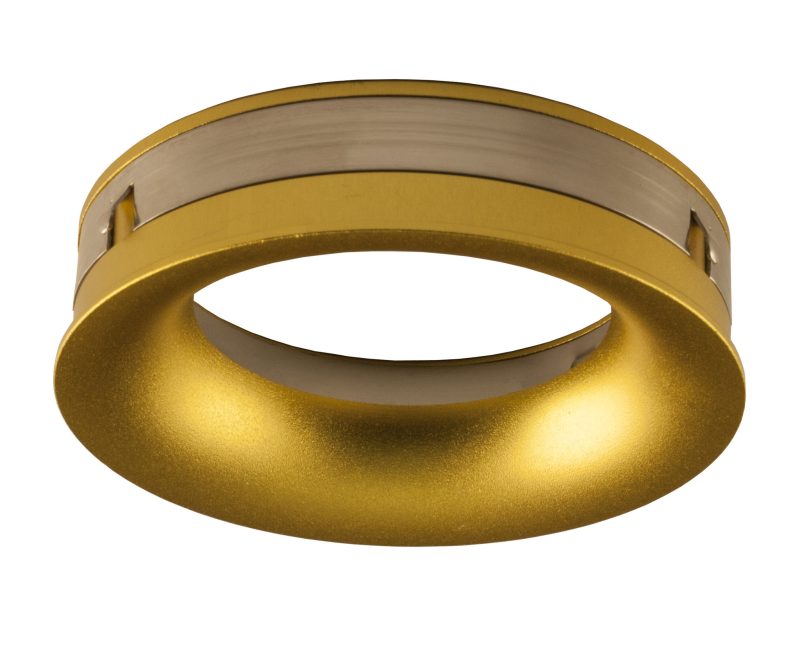

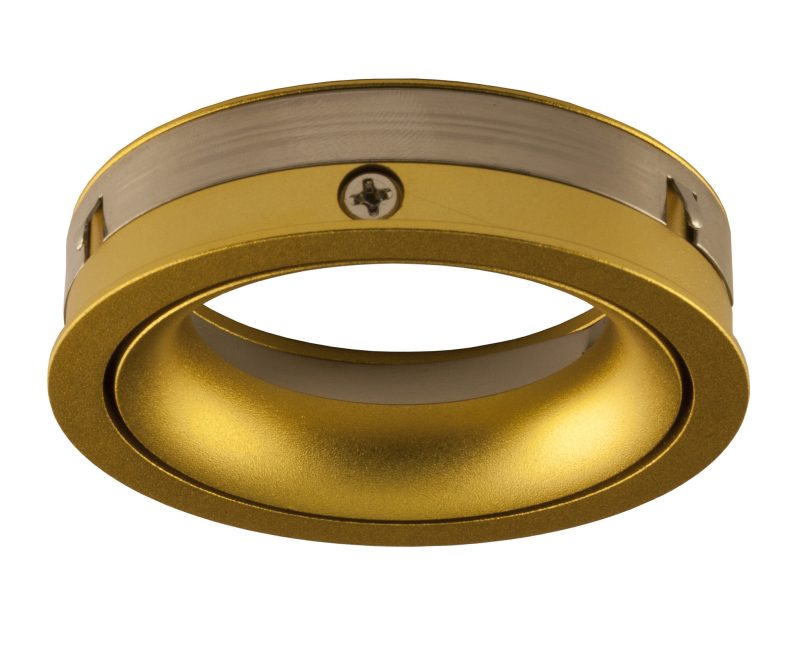

The ring around the fitting is fixed, beveled and gold-coloured. Other ring and insert finishes from the same range are available separately.
- Material: aluminium
- Colour: grey (ring gold, beveled, fixed)
- Outer size: 93.7 x 93.7 mm
- Cut-out size: 80 mm
- Installation depth: 90 mm
- Fitting: GU10 (lamp not included)
- Number of light points: 1
- Voltage: 220-240V
- IP rating: IP20
- Energy class: F
