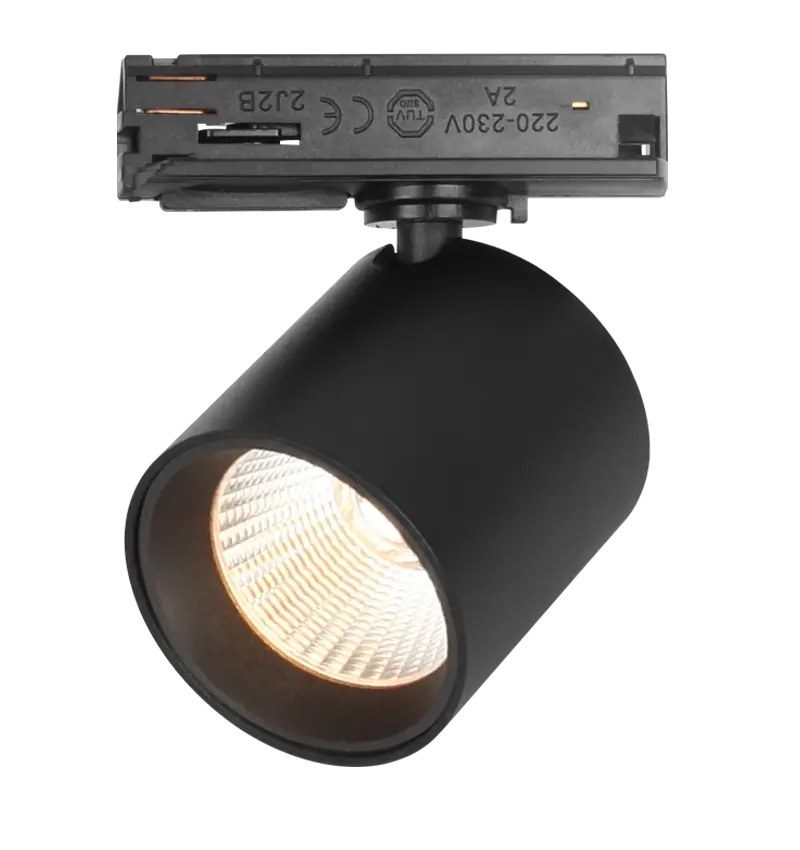

Fantasia Oyo LED spot for 1-phase track system, black, 620 lumen
Fantasia

Oyo LED spot for 1-phase track system, black, 620 lumen

Art. TR0170B EAN 5414358119317
€58.00RRP incl. VAT

You’ll see your net price once you’re logged in.

Log in Create account
  • Delivery in 2 to 5 working days

What do you need?

Fits the Fantasia Track track system (single-phase, 230 V). A track or part from another brand or system will not fit.

  1. 1
    TrackChoose the length. Need it longer? Join two tracks with a straight connector.
    Track
  2. 2
    Power supplyLeft or right at the end where the power comes in. Is your ceiling box halfway along the track? Then choose centre: a straight connector with built-in power feed that also joins two tracks.
    Power supply

Also fits Fantasia Infinitus (single-phase profile, 230 V). View the track

You may also need: end cap, connectors, pendant adapter
  1. End capFinishes the open end of the track neatly.
    End cap
  2. ConnectorsOnly if you join tracks or make a corner.
    Straight connector
    L-connector
    T-connector
    X-connector
    Flexible connector
    Adjustable L-connector
  3. Pendant adapterTo hang a pendant light from the track.
    Pendant adapter

We always check your order, so you won’t be missing anything.

Specifications

ColourBlack
MaterialAluminium, ijzer
FinishBlack
Power (W)7.5
Voltage200-240V
Energy classG
Light output (lm)620
Colour temperature2700
DimmableYes
IP ratingIP40
Width (mm)56
Height (mm)58
Depth (mm)56
Number of light points1
Light source typeLED (vaste module)
Light source includedYes

Documents

Installation and CEPDF

About this light

The Oyo is an LED spot for 1-phase track systems, made from aluminium and iron in a black finish. The head tilts, so the light can be aimed, for example above a dining table or worktop.

The LED module is built in and delivers 620 lumen at 7.5 watts, with a colour temperature of 2700 kelvin (warm white) and colour rendering above Ra90. The spot runs on 200-240V AC and has an IP40 rating, suitable for dry indoor spaces.

The Oyo is part of Fantasia's Deco collection.

  • Colour: black
  • Material: aluminium, iron

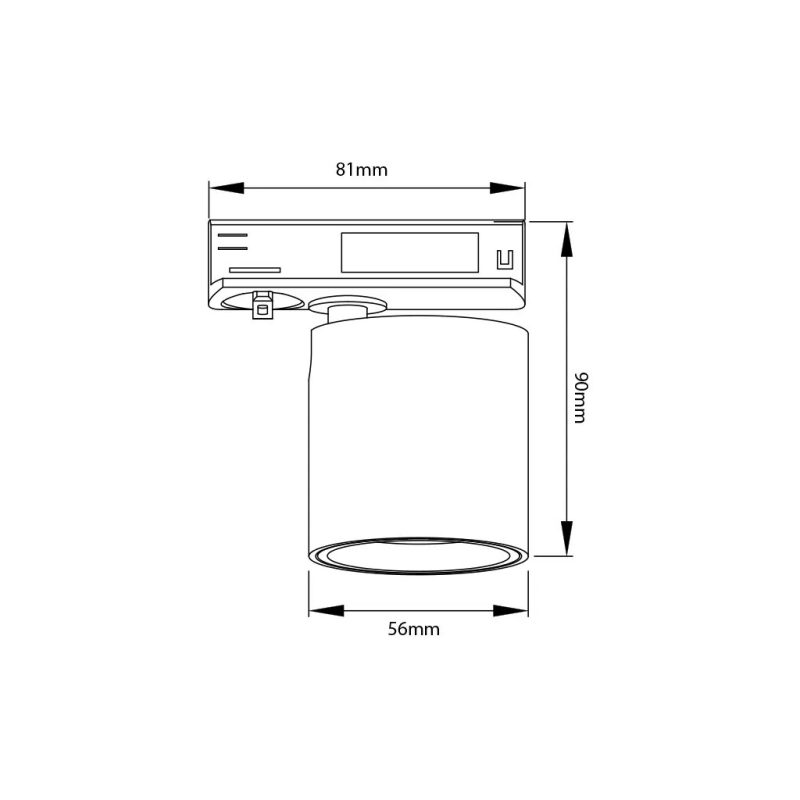

  • Dimensions: 56 x 58 x 56 mm (w x h x d)
  • Wattage: 7.5W
  • Light output: 620 lumen
  • Colour temperature: 2700K (warm white)
  • Colour rendering: Ra >90
  • IP rating: IP40
  • Number of light points: 1
  • Light source: built-in LED module, included, not replaceable
  • Power supply: 200-240V AC
  • Tiltable head
  • Suitable for 1-phase track systems
  • Energy class: G
